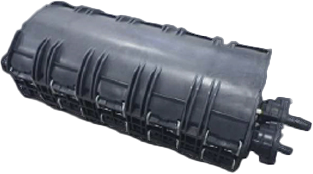

5184F
- Sumitomo’s newest TN optical closure
- Capacity of up to 5184 fibres
- Main body assembly structure featuring buckles for easy accessibility
- Soft rubber grommets in the cable sealing structure protect the high fibre count splices from the elements
Product Downloads
Product Information
Features
- High splice capacity underground closure
- Best suitable to ultra-high fibre count cable up to 5,184 fibres
- Butt joint and branch joint (2 main + 1 branch) available
- Fully re-usable closure with soft rubber grommets at cable entries
- Applicable cable diameter:
- 33mm to 35mm / 1.30” to 1.38”: by standard kit in FTC-TN5184
- 8mm to 32mm / 0.32” to 1.26”: by optional cable sealing kit M
- IP Rating: IP68
Specifications
| Property | Specification |
|---|---|
| Splice capacity | • 5,184f (pliable ribbon) • 1,728f (standard ribbon) • 288f (loose tube) |
| Splice tray capacity | • 216f (pliable ribbon) • 72f (standard ribbon) • 12f (loose tube) |
Physical Characteristics
| Property | Specification |
|---|---|
| Height | 9.7in (246mm) |
| Width | 11.3in (293mm) |
| Depth | 24.3in (618mm) |
Ordering Information
| Part Number | Description |
|---|---|
| FTC-TN5184 | Optical closure TN5184, capacity of 5,184 fibres, 432 x 12f ribbon splices |
| BRTN-M | Cable sealing kit M for cable with 0.31 – 1.26in (8 – 32mm) diameter |
