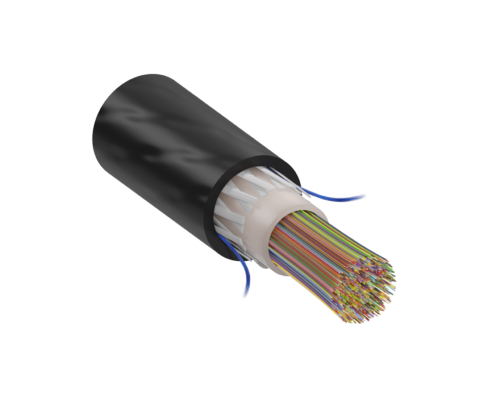

Freeform Ribbon™ Non CPR-Rated Central Tube Cables

Sumitomo Electric’s Freeform Ribbon™ Central Tube Cables feature a flame retardant Low Smoke Zero Halogen (LSZH) outer jacket and all-dielectric cable construction requires no grounding or bonding.

Contact Us

Product Downloads

Outdoor LSHF Riser

Downloads

Features

  • Complies with current European market CPR requirement (see Specifications)
  • Dry central tube design for easy installation; no mess when splicing
  • 12-fibre ribbons groupings for compatibility with multi-fibre connectors
  • Bend-insensitive fibre, PureAccess G.657.A1
  • 250µm and 200µm options available
  • Compatible with Sumitomo’s ribbon-splicer technology for rapid installation
  • Bar-coded fibre ribbons for easy identification
  • Freeform Ribbon™ allows for higher density in space-constrained applications

Specifications

Outdoor

250μm
Fibre CountPart NumberNomincal Cable ODFibres per RibbonNo. of BundlesApplications
12fSE-8RSP0012-B-1211.3mm12fn/aOutdoor
24fSE-8RSP0024-B-1211.3mm12fn/aOutdoor
36fSE-8RSP0036-B-1211.3mm12fn/aOutdoor
72fSE-8RSP0072-B14.1mm12f1Outdoor
144fSE-8RSP0144-B14.1mm12f2Outdoor
432fSE-8RSP0432-B18.5mm12f4Outdoor
864fSE-8RSP0864-B24.2mm12f5Outdoor

Ordering Information

Instructions: please refer to the ‘Specifications‘ table for part numbers.
