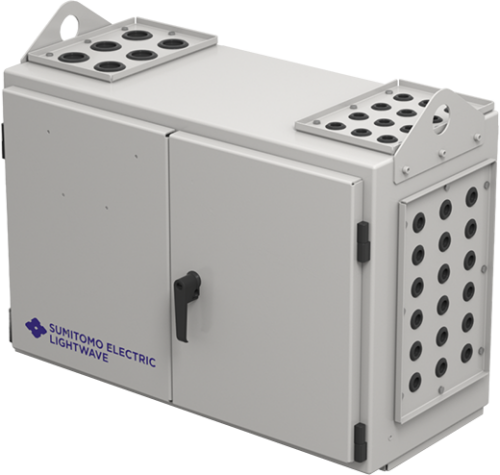

3K Vertical HyperScale eXchange (3K-V-HSX)
Often one size does not fit all. That is also the case when it comes to fibre entrance cabinets. While vast cabinets with high fibre counts are the perfect solutions for large data centres, there is still a need for a spacious cabinet, but with a smaller number of fibres. Recognised this need, Sumitomo Electric has created the 3K-V-HSX:
- Spacious cabinet for a smaller number of fibres
- 3,456 fibre splice capacity
- Well suited for the needs of any private network or data centre entering into or requiring a low fibre optic distribution frame
Product Downloads
Product Information
Features
- Compact frame
- Fibre capacity of 3,456
- Wall mount
- Range of shingles (glands sold separately)
- Shingle placement left/right & top/bottom
- Eliminates unwanted dust from entering

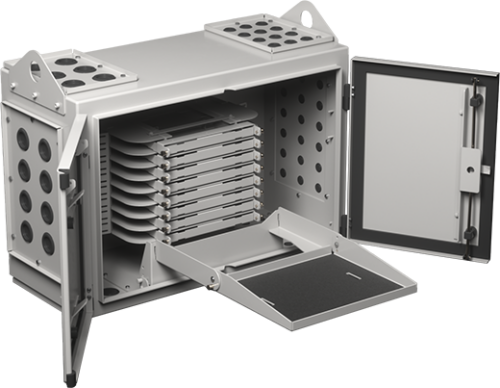

- Integrated work platform
- Easy to use and integrated flat surface work station for splicing & other tasks
- Doors
- Removable
- Work platform stored inside
Specifications
| Property | Specification |
|---|---|
| Fibre capacity | 3,456 fibres |

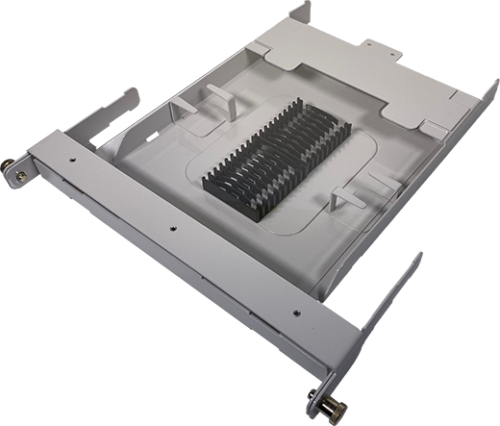

| Splice tray capacity | 8 trays |
| Splice tray fibre capacity | 432 fibres |
| Growth configuration | Fully loaded |
| Mounting type | Wall mount |
| Colour | Tele grey |
| Material | Aluminum |
| Integrated work platform | Yes |
| Lifting plate | Yes |
| Lockable | Padlock |
| Removable front door | Yes |
For a detailed specification, please download the above brochure.
Physical Characteristics
| Property | Specification |
|---|---|
| Height | 21.5in (546mm) |
| Width | 32in (813mm) |
| Depth | 15in (381mm) |
Ordering Information
| Part Number | Item Name | Description |
|---|---|---|
| FTHFC-3K-V-SK1 | 3K-V-HSX solution | 3K vertical hyperscale eXchange cabinet, 3,456f splice capacity. Contains 8, 432f capacity splice trays, work platform, 6 entry/exit shingles, starter kit. |
