Access Network

Vast Portfolio of Standard Single-Mode Optical Fibres

  • G.652.D. Low water peak single-mode optical fibres: PureBand™ | PureBand™ [LL]
  • G.657. Bend insensitive single-mode optical fibres: PureBand™ PLUS | PureBand™ R | PureBand™-R [LL] | PureAccess™ | PureAccess™ [A2]
  • Suitable for diverse market applications
  • Reliable supply with 40+ years of experience
  • Worldwide support
Contact Us

Product Downloads

PureBand™ Optical Fibre

Downloads

PureBand™ [LL]

Downloads

PureBand™ PLUS 250μm

Downloads

PureBand™ R 250μm

Downloads

PureBand™ R [LL] 250μm

Downloads

PureAccess™ 250μm

Downloads

PureAccess™ [A2] 250μm

Downloads

Features

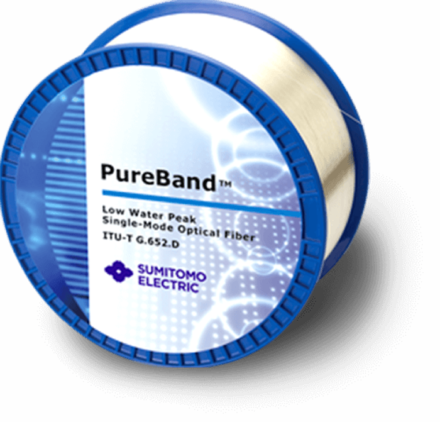

PureBand™ | G.652.D

Low Water Peak Single-Mode Optical Fibre
  • The standard single-mode fibre in compliance with ITU-T G.652.D, one of the industry-leading products
  • A proof-stress level of 1.2% (120 kpsi) enables customers to benefit from robust cabling with higher resistance to fibre breakage and long-term reliability: peace of mind from a market-leading reliability
  • Widely used for backbone, core, metro, access, FTTH, delivering high versatility

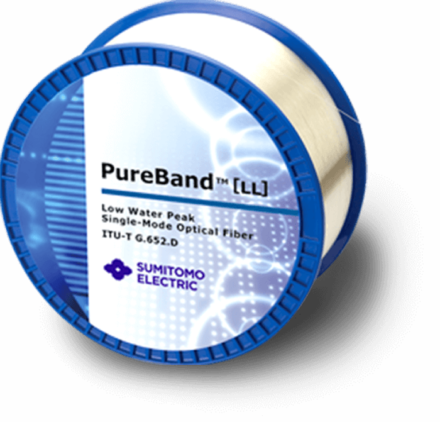

PureBand™ [LL] | G.652.D

Low Water Peak Single-Mode Optical Fibre
  • This higher grade of “PureBand™”has improved attenuation in compliance with ITU-T G.652.D
  • The versatility and robustness of PureBand™, combined with low-loss in 1260–1625nm (1550nm: ≤ 0.18 dB/km) provide the optimum, low-loss choice for high performance terrestrial applications

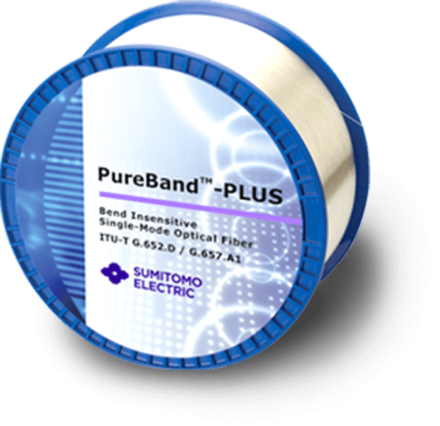

PureBand™ PLUS | G.652.D / G.657.A1

Bend Insensitive Single-Mode Optical Fibre
  • This higher grade of “PureBand™” improves bend insensitivity in compliance with ITU-T G.657.A1 and G.652.D
  • The versatility and robustness of PureBand™, together with superior bending performance of ≤10mm allow more compact cabling construction for access and FTTH applications
  • A similar MFD to conventional SMF delivering excellent splicing-loss
  • A reduced 200μm coating diameter is available to achieve:
    – Higher fibre density of cable and smaller outer cable diameter
    – More effective use of existing, limited space

PureBand™ R | G.652.D / G.657.A1

Bend Insensitive Single-Mode Optical Fibre
  • The upper model of “PureBand™” improved the bend insensitivity in compliance with ITU-T G.657.A1 and G.652.D
  • The versatility and robustness of PureBand™, together with superior bending performance of ≤10mm enable a more compact cabling construction for access and FTTH applications
  • The same MFD as conventional SMF delivering excellent splice-loss and a seamless network
  • A reduced 200μm coating diameter is available to obtain:
    – Higher fibre density of cable and smaller outer cable diameter
    – More effective use of existing limited space

PureBand™ R [LL] | G.652.D / G.657.A1

Bend Insensitive Single-Mode Optical Fibre
  • The ultimate all-round fibre in compliance with ITU-T G.657.A1 and G.652.D
  • A fibre combining all benefits of ”PureBand™”, “PureBand™ [LL]”, and “PureBand™ R”
    ✔ A robust versatility with low-loss and superior bending performance
    ✔ Optimises inventory control for cable makers – one fibre for all applications
  • The same MFD as conventional SMF delivering excellent splice-loss and a seamless network
  • A reduced 200μm coating diameter is available to realise:
    – Higher fibre density of cable and smaller outer cable diameter
    – More effective use of existing limited space

PureAccess™ | G.652.D / G.657.A1

Bend Insensitive Single-Mode Optical Fibre
  • The pioneering fibre in compliance with G.657.A1 and G.652.D
  • Superior bend performance of ≤10mm enables a more compact cabling construction
  • Applicable for backbone, core, metro and optimised for access, FTTH
  • A reduced 200μm coating diameter is available to realise:
    – Higher fibre density of cable and smaller outer cable diameter
    – More effective use of existing limited space
  • Exceptional proof stress level of 1.5% (150 kpsi) offers greater assurance of a robust network without risk of fibre break: peace of mind from a market-leading reliability

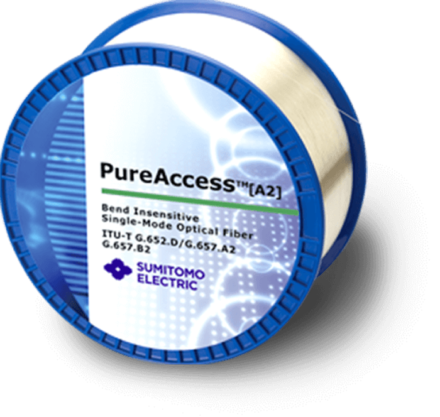

PureAccess™ [A2] | G.652.D / G.657.A2 / G.657.B2

Bend Insensitive Single-Mode Optical Fibre
  • Optimal bending performance, in compliance with ITU-T G.657.A2 and ITU-T G.652.D
  • Superior bend performance of 7.5mm enables a more compact cabling construction
  • Applicable for backbone, core, metro, access and especially FTTH
  • A reduced 200μm coating diameter is available to realise:
    – Higher fibre density of cable and smaller outer cable diameter
    – More effective use of existing limited space
  • Newly released 180μm coating diameter for further improvement of fibre density
  • Exceptional proof stress level of 1.5% (150 kpsi) offers greater assurance of a robust network without risk of fibre break: peace of mind from a market-leading reliability

“PureShield™ [A2] | G.652.D / G.657.A2 / G.657.B2

Bend Insensitive Single-Mode Optical Fibre
  • Outstanding bending performance, in compliance with ITU-T G.657.A2 and ITU-T G.652.D
  • Superior trench-assisted bend performance of 7.5 mm allows a more compact cabling construction
  • Applicable for backbone, core, metro, access and especially FTTH
  • Exceptional proof stress level of 1.5% (150 kpsi) offers greater assurance of a robust network without risk of fibre break: peace of mind from a market-leading reliability

Product Comparison

Product NamePureBand™PureBand™
[LL]
PureBand™ PlusPureBand™ R
PureBand™ R
[LL]
PureAccess™PureAccess™
[A2]
PureShield™
[A2]
Standards ComplianceG.652.DG.652.DG.652.D/
G.657.A1
G.652.D/
G.657.A1
G.652.D/
G.657.A1
G.652.D/
G.657.A1
G.652.D
G.657.A2/B2
G.657.A2
Available
Coating Diameter
250μm250μm250μm
200μm
250μm
200μm
250μm
200μm
250μm
200μm
250μm
200μm
180μm
250μm
200μm
Minimum
Bending Radius
25mm25mm10mm10mm10mm10mm7.5mm7.5mm
Mode Field Diameter
at 1310 nm
9.2 ± 0.4μm9.2 ± 0.4μm8.9 ± 0.4μm9.2 ± 0.4μm9.2 ± 0.4μm8.6 ± 0.4μm8.6 ± 0.4μm8.8 ± 0.4μm
Cable Cut-off
Wavelength
≤ 1260nm≤ 1260nm≤ 1260nm≤ 1260nm≤ 1260nm≤ 1260nm≤ 1260nm≤ 1260nm
Attenuation
at 1310 nm
≤ 0.35 dB/km≤ 0.32 dB/km≤ 0.35 dB/km≤ 0.35 dB/km≤ 0.32 dB/km≤ 0.35 dB/km≤ 0.35 dB/km≤ 0.35 dBkm
Attenuation
at 1383 nm
(After H2 aging)
≤ 0.35 dB/km≤ 0.32 dB/km≤ 0.35 dB/km≤ 0.35 dB/km≤ 0.32 dB/km≤ 0.35 dB/km≤ 0.35 dB/km≤ 0.35 dBkm
Attenuation
at 1550 nm
≤ 0.20 dB/km≤ 0.18 dB/km≤ 0.20 dB/km≤ 0.20 dB/km≤ 0.18 dB/km≤ 0.21 dB/km≤ 0.21 dB/km≤ 0.20 dBkm
Attenuation
at 1625 nm
≤ 0.23 dB/km≤ 0.20 dB/km≤ 0.23 dB/km≤ 0.23 dB/km≤ 0.20 dB/km≤ 0.22 dB/km≤ 0.22 dB/km≤ 0.22 dBkm
Zero Dispersion Wavelength1300–1324nm1300–1324nm1300–1324nm1300–1324nm1300–1324nm1300–1324nm1300–1324nm1300–1324nm
PMD
Link Design Value
≤ 0.06 ps/√km≤ 0.06 ps/√km≤0.06 ps/√km≤0.04 ps/√km≤0.04 ps/√km≤ 0.06 ps/√km≤ 0.06 ps/√km≤ 0.06 ps/√km

Ordering Information

Please Contact Us for further information.
